Our Thermoforming Machines
Designed to meet the highest demands of food production lines.
Browse our machine range

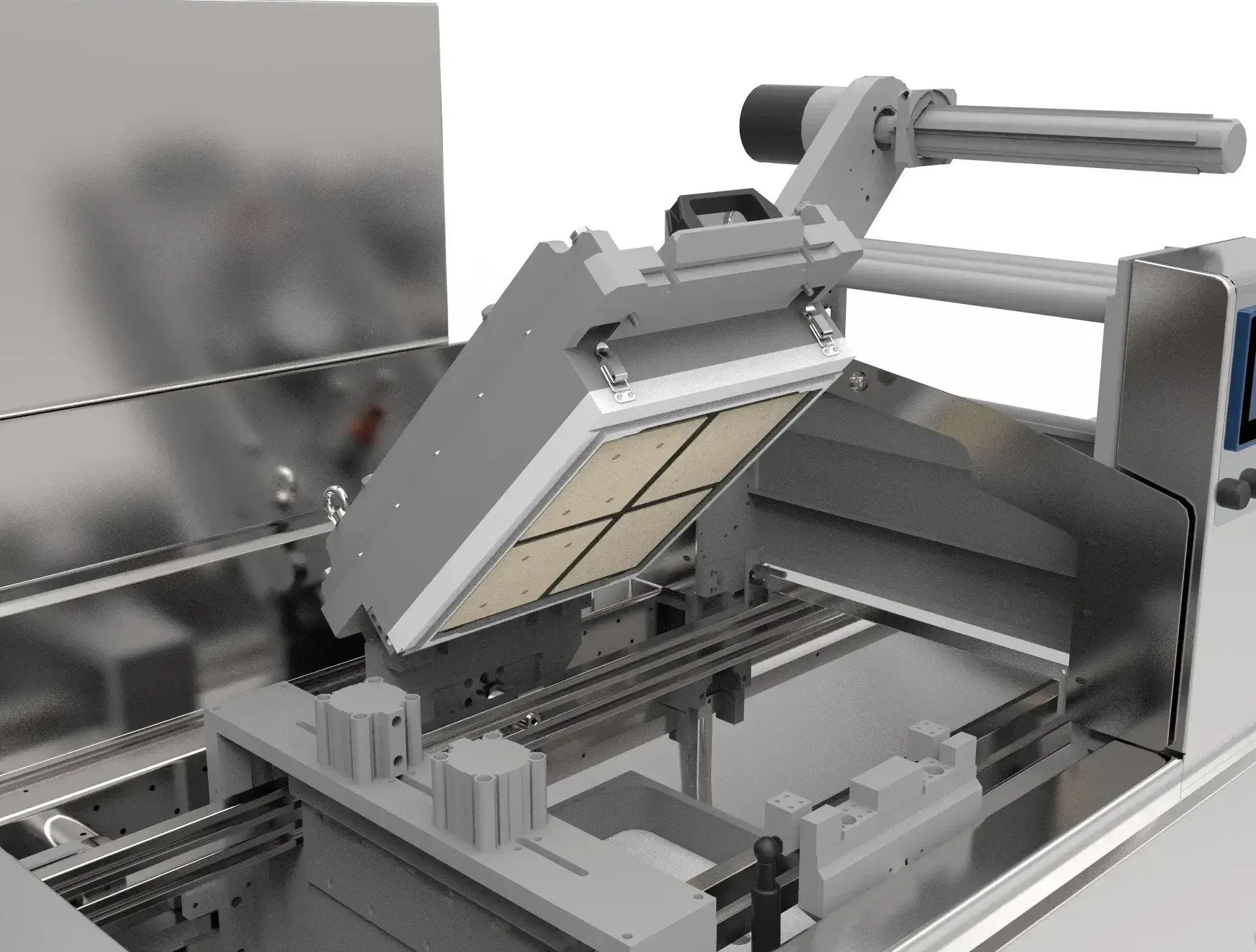

Simplified format changeover with our patented technology
Switch from one tooling configuration to another in under 10 minutes at both the forming and sealing stations.

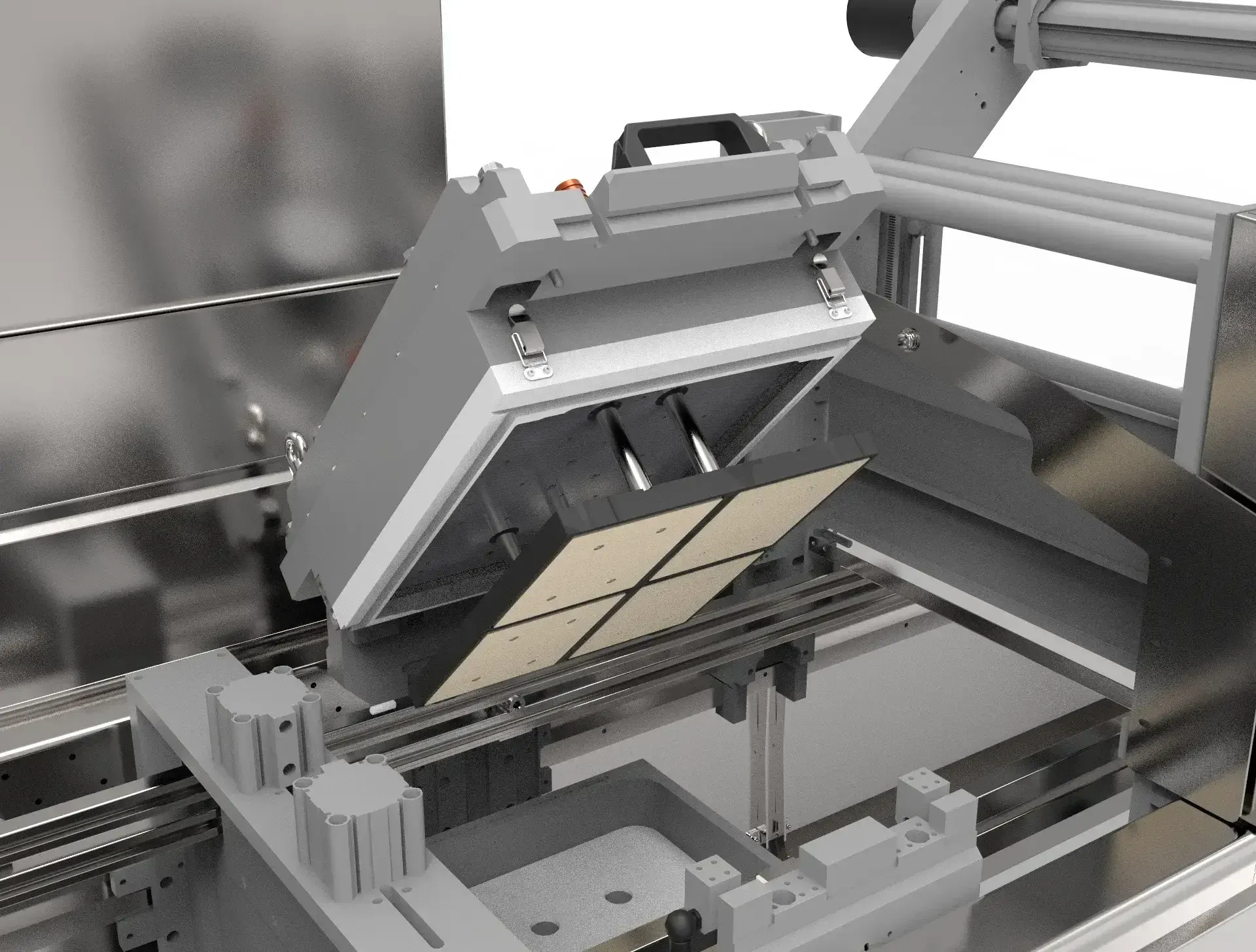

Direct access to the forming mold and sealing plates for easy component replacement.
Pneumatic locking systems and manual locking chucks ensure safe and simple adjustments.
The benchmark in performance and ergonomics.
Versatile
Designed to handle a wide variety of formats: trays, cardboard or reusable containers.
Easy to integrate
Modular architecture and intuitive interface for fast commissioning, without major modifications to the existing line.
Customizable
Configurable to your production requirements for packaging perfectly tailored to each product.
Cost-effective
Optimized material and energy consumption for sustainable performance and controlled operating costs.
Compare models
| FS Serie 10 Compact | FS Serie 10 Optimum | FS Serie 10 Premium | |
|---|---|---|---|
| Standard film width | 322 mm ou 422 mm | 322 mm / 372 mm / 422 mm | — |
| Custom film width | — | ||
| Standard advance step | 240 mm, 270 mm ou 300 mm | 240 mm / 270 mm / 300 mm / 320 mm | Custom |
| Custom advance step | — | Optional (400 max) | Up to 1000 mm |
| Maximum depth | 80 mm | 110 mm (130 mm en option) | 200 mm |
| Film | Flexible, Semi-rigid, serrated cut | Flexible, Semi-rigid | Flexible, Semi-rigid, Rigid |
| Sealing process | Heat sealing / Vacuum packaging / MAP | Heat sealing / Vacuum packaging / MAP / Shrink / Skin | All processes |
| Frame length | 2,1 m / 2,4 m | 3 m / 3.5 m / 4 m / 4.5 m (STD) - 5 m / 5.5 m / 6 m (with labeler) | Variable depending on project |
Have a packaging project?
Have questions about our machines, need a quote, or technical advice? Our team of experts is here to support you every step of the way.
